Carlton offers a wide range of ring sizes in all forgeable alloys in both contoured and rectangular shapes.
Forged Ring Products
Continuous research and development including experimentation with new alloys helps keep Carlton at the forefront of ring forging leadership. Carlton forges products from the entire spectrum of forgeable alloys including carbon and alloy steels, aluminum, titanium, nickel, cobalt and other exotic high-temperature metals.
Small Rings
Carlton forges rings as small as 4” in diameter. Each ring is formed to exacting standards and is thoroughly inspected and tested. Carlton’s expertise and experience maintains the highest quality and precision no matter how small the dimensions required.
| Part | Sizes |
|---|---|
| Containment Compressor Case | 23” OD x 6.4” Lg |
| Machined Small Rings | 4” OD to 26.5” OD |
| Combustion Liner | 32.2” OD |
| Combustion Case | 32.07” OD |
| Seal Bearing | 14” OD |
| Combustion Fan Case | 29.8” OD |
| Forged Small Rings | 4” OD to 20” OD |
| Petrochemical Application | 19.75” OD |
Medium Rings
Carlton offers a wide range of ring sizes in all forgeable alloys in both contoured and rectangular shapes. Continuous research and development including experimentation with new alloys helps keep Carlton at the forefront of ring forging leadership.
| Part | Sizes |
|---|---|
| Combustion Case | 34.4” OD |
| Aft Case | 35.94” OD |
| Combustion Case | 43.5” OD |
| Low Pressure Turbine Case | 49.3” OD |
| Spool | 45.62” OD |
| Fan Case | 61.7” OD |
| Compressor Case | 34” OD |
| Rotating Drum | 6.5” OD |
| Compressor Spool | 40.3” OD |
Large Rings

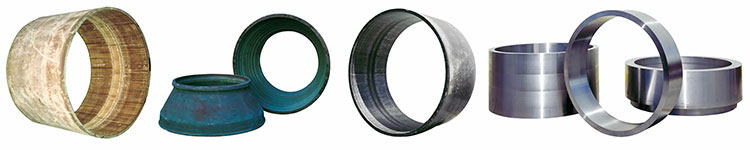

Carlton’s largest rings can achieve a diameter up to 180” with heights through 65”. Some of these parts weigh in excess of 16,000 pounds. Yet these large rings meet the highest standards of even the most demanding applications. For instance, Carlton’s reputation in the aircraft, nuclear and petroleum industries is unsurpassed for complete reliability and consistent quality.
| Part | Sizes |
|---|---|
| Low Pressure Turbine Case | 75.9” OD |
| Fan Case | 120” OD |
| Fan Case | 104.9” OD |
| Fan Case | 135.6” OD |
| Low Pressure Turbine Case | 68.3” OD |
| Nuclear | 80” OD · 75” OD · 76” OD |
| Fan Case | 85” OD |
| Fan Case | 91.3” OD |
| Copper Foil Drum | 55” to 128” Diameter, 80” OD x 64” Lg |
| Aluminum Fan Case | 110” OD · 120” OD |
